Oil Drilling Industry Angular Contact Ball Bearing 90*142mm OEM Tungsten Carbide

LUOYANG MONTON BEARING SCIENCE & TECHNOLOGY CO.,LTD.
Contact Now

Oil Drilling Industry Angular Contact Ball Bearing 90*142mm OEM Tungsten Carbide

  • 1
  • 2

Brand Name : MONTON

Model Number : 128718K

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Material : 55SiMoVA or G20CrNi4A

Row : 7row or 8 row or more

Application : Oil drilling motor or downhole motor

Customer : Oil company such as GE or SLB

ID : 90mm

OD : 142mm

Type : Thrust angular contact ball bearings

Packing : Single wooden case packing+Pallet

Contact Now

Thrust Angular Contact Ball Bearings

128718K

90*142mm

Material:55SiMoVA or G20CrNi4A

Main application: Drilling motor or othe downhole motor.

Main customers:GE and SLB and other OEM oil company

Main advantage:We have developed the material 55SiMoVA which have the high rigidity and high wear resistance

Guarantee bearing life:200Hours

Product Description

The bearings in a mud motor at the end of a drill string would place a huge influence on productivity and reliability in terms of oil
drilling or gas drilling.The working condition of these mud motor bearings are extremely harsh: the bearings bear heavy axial and
shock loads, and they are also exposedwith highly abrasive mud.

• Special steel for all bearing components
• Full complement bearing
• Precision matched rings
• Unique bearing design to support heavy
• axial drilling loads

Here below is some codes for your referance:

Oil Drilling Industry Angular Contact Ball Bearing 90*142mm OEM Tungsten Carbide

The real bearings picture

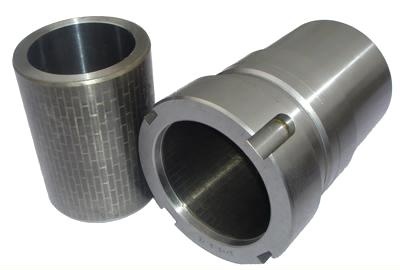

Downhole Motors Radial Bearing (Tungsten Carbide Radial Bearing)

We can also supply the Radial bearings which are used together with the Thrust angular contact ball bearings.

1. Radial Bearing is used as antifriction bearing for down hole motor. We have three different types from size 54 to size 286 for your choice(a total of 14 size).
2. Hard alloy covering rate reached to more than 80%. It has a longer life and more antifriction.

Oil Drilling Industry Angular Contact Ball Bearing 90*142mm OEM Tungsten Carbide


Product Tags:

precision ball bearings



angular contact thrust bearing


China Oil Drilling Industry Angular Contact Ball Bearing 90*142mm OEM Tungsten Carbide wholesale

Oil Drilling Industry Angular Contact Ball Bearing 90*142mm OEM Tungsten Carbide Images
