HM256848DWH - HM256810 Taper Roller Bearing Customized Manipulator Cross Roller Bearing

Name: HM256848DWH HM256810 Taper Roller Bearing Customized Manipulator Cross Roller Bearing
Brand: MONTON
Price: 1 USD

Brand Name : MONTON

Model Number : HM256848DWH - HM256810

Place of Origin : CHINA

MOQ : 1

Name : HM256848DWH - HM256810

d : 298.45

D : 422.275

T : 150.813

Weight : 66KG

keywords : customized manipulator cross roller bearing

Price : USD

Packaging Details : Singlebox

Delivery Time : 7-35 days

Certification : ISO9001

Contact Now

HM256848DWH - HM256810

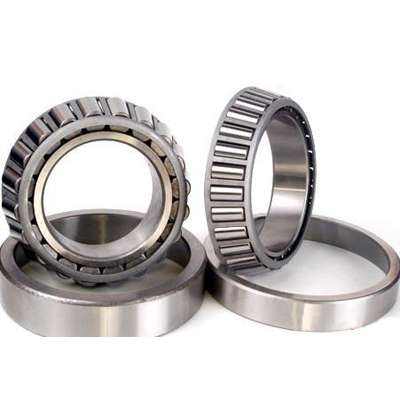

Tapered Roller Bearings customized manipulator cross roller bearing

Specifications

Series	HM256800
Cone Part Number	HM256848DWH
Cup Part Number	HM256810
Design Units	Imperial
Bearing Weight	146.200 lb66.3 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm

Dimensions

d - Bore	11.7500 in298.450 mm
D - Cup Outer Diameter	16.6250 in422.275 mm
B - Double Cone Width	5.9375 in150.813 mm
C - Cup Width	2.5000 in63.500 mm
T - Bearing Width across Cups	5.9375 in150.813 mm

Abutment and Fillet Dimensions

R - Cone Frontface "To Clear" Radius¹	0.130 in3.30 mm
r - Cup Backface "To Clear" Radius²	0.130 in3.30 mm
da - Cone Frontface Backing Diameter	12.48 in317 mm
Db - Cup Backface Backing Diameter	15.51 in394 mm
Ab - Cage-Cone Frontface Clearance	0.19 in4.8 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	83300 lbf371000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	560000 lbf2490000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	145000 lbf645000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	48000 lbf214000 N

Factors

K - Factor⁷	1.73
e - ISO Factor⁸	0.71
Y1 - ISO Factor⁹	0.95
Y2 - ISO Factor¹⁰	1.42
Cg - Geometry Factor¹¹	0.175
