High Speed Ball Bearings External Tooth Four Point Contact Ball Slewing Bearing

Name: High Speed Ball Bearings External Tooth Four Point Contact Ball Slewing Bearing
Brand: MONTON
Price: 1 USD

Brand Name : MONTON

Model Number : H239649 - H239612CD

Place of Origin : CHINA

MOQ : 1

Name : H239649 - H239612CD

d : 187.325

D : 320.675

T174.625 : 85.725

Weight : 52KG

keywords : precision machine tool bearing factory

Price : USD

Packaging Details : Single box

Delivery Time : 7-35 days

Certification : ISO9001

Contact Now

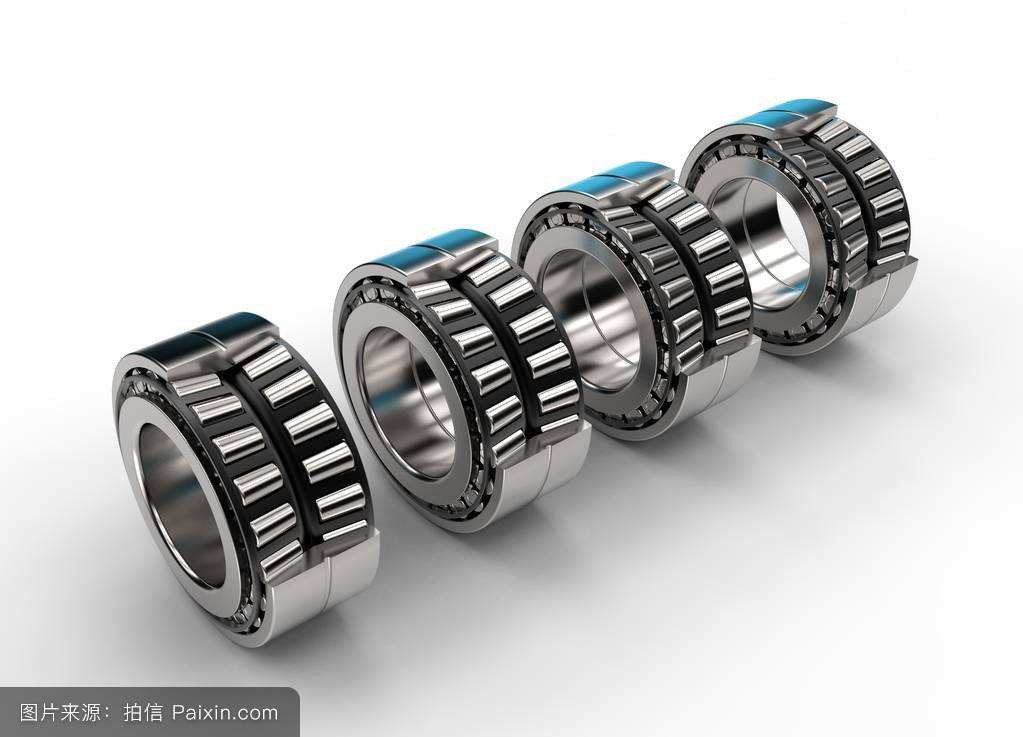

H239649 - H239612CD

Tapered Roller Bearings

external tooth four point contact ball slewing bearing made in china

Specifications

Series	H239600
Cone Part Number	H239649
Cup Part Number	H239612CD
Design Units	Imperial
Bearing Weight	115.78 lb52.516 Kg
Cage Type	Stamped Steel
Ab - Cage-Cone Frontface Clearance	0.14 in3.6 mm

Dimensions

d - Bore	7.3750 in187.325 mm
D - Cup Outer Diameter	12.6250 in320.675 mm
B - Cone Width	3.3750 in85.725 mm
C - Double Cup Width	5.4375 in138.113 mm
T - Bearing Width across Cones	7.3125 in185.738 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius¹	0.220 in5.600 mm
r - Cup Frontface "To Clear" Radius²	0.06 in1.5 mm
db - Cone Backface Backing Diameter	8.43 in214.1 mm
Da - Cup Frontface Backing Diameter	11.85 in300.74 mm
Aa - Cage-Cone Backface Clearance	0.42 in10.7 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	61100 lbf272000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	410000 lbf1830000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	106000 lbf473000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	33400 lbf148000 N

Factors

K - Factor⁷	1.83
e - ISO Factor⁸	0.67
Y1 - ISO Factor⁹	1.011.50
Y2 - ISO Factor¹⁰	1.5
G1 - Heat Generation Factor (Roller-Raceway)¹¹	906
G2 - Heat Generation Factor (Rib-Roller End)	90.3
Cg - Geometry Factor¹²	0.124
