D-41251 DJ2 Single Row Tapered Roller Bearing

Item number:	D-41251 DJ2
Designation:	Single-row tapered roller bearing
Inside diameter (d):	7,087 inch (180,000 mm)
Outside diameter (D):	11,024 inch (280,000 mm)
Width (b):	1,969 inch (50,000 mm)
Weight:	10,660 Kg
Customs tariff number:	84822000

Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction. Single row tapered roller bearings are separable, i.e. the inner ring with roller and cage assembly (cone) can be mountedseparately from the outer ring (cup).

tapered ball bearing

anti friction bearing

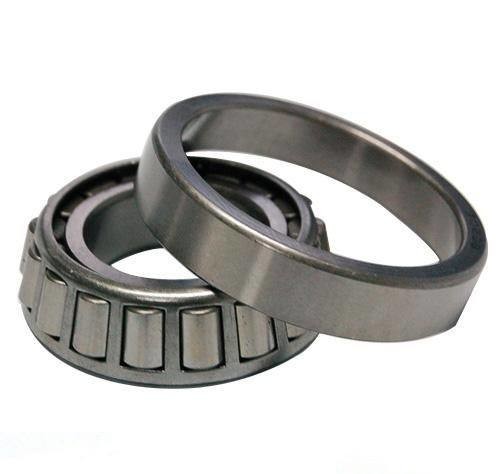

D-41251 DJ2 Single Row Tapered Roller Bearing Images
