YRT395 yrt slewing bearings made in china

Name: YRT395 yrt slewing bearings made in china
Brand: MONTON
Price: 1 USD

Brand Name : MONTON

Model Number : YRT395

Place of Origin : CHINA

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Certification : ISO9001

Contact Now

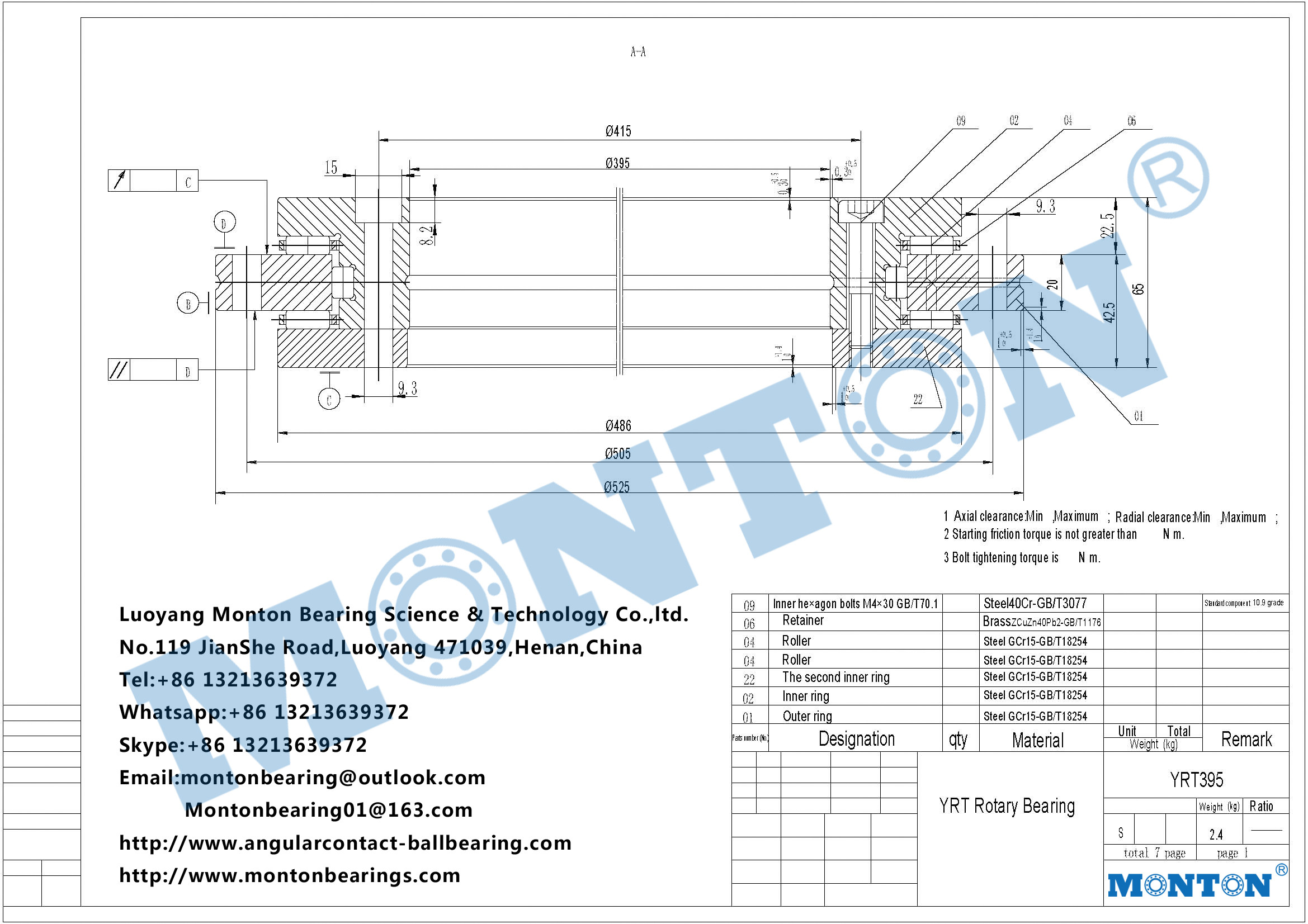

YRT395 yrt slewing bearings made in china

bearing type

Dimensions

fixing holes

inner ring

outer ring

unit: mm

qty

YRT395

395

525

42.5

486

415

505

9.3

8.2

9.3

bearing type

Number of retaining screws

Extraction thread hole

Number of pitches X angle of pitches

Screw tightening torque

Basic load rating

Limiting speed

Bearing frictional torque

weight

axial

radial

dynamic load

static load

dynamic load

static load

MA2)

Ｃａ

Coa

Cor

grease

qty

qty×t

Ｎｍ

r/min

YRT395

M12

48×7.5°

300

2280

186

655

140

Machining tolerances for shafts
Bearings	shaft diameter (mm)			roundness(○)	perpendicularity(⊥)	parallelism(∥)	roughness Ra
Bearings	Nominal dimension	upper	lower	t1(µm)	t3(µm)	t4(µm)	Ra(µm)
YRT395	395	0	-0.025	13	9	9	0.8

Machining tolerances for housings
Bearings	(mm)housing diameter			roundness(○)	perpendicularity(⊥)	parallelism(∥)	roughness Ra
Bearings	Nominal dimension	upper	lower	t1(µm)	t3(µm)	t4(µm)	Ra(µm)
YRT395	525	+0.034	-0.01	16	11	11	1.6

YRT395 yrt slewing bearings made in china
