7007B Small Angular Contact Ball Bearing Food Machine Radial Load Bearing

Name: 7007B Small Angular Contact Ball Bearing Food Machine Radial Load Bearing
Brand: MONTON
Price: 1 USD

Brand Name : MONTON

Model Number : 7007B

Place of Origin : CHINA

MOQ : 1

Price : USD

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Single box

Certification : ISO9001

Payment Terms : T/T

Contact Now

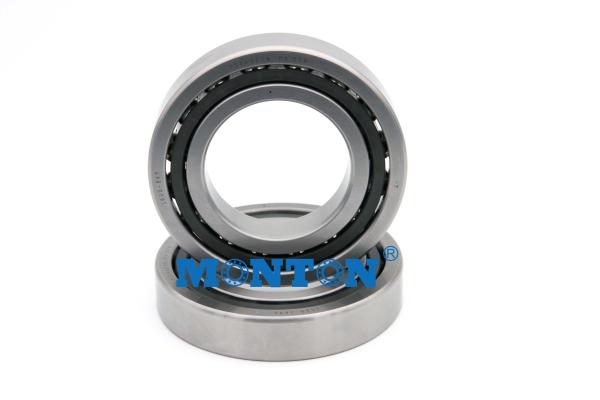

Small Angular Contact Ball Bearing 7007B

Food Machine Radial Load Bearing angular contact ball bearing suppliers

Small Angular Contact Ball Bearing 7007B Food Machine Radial Load Bearing

Description:

ETR Angular Contact Ball bearing 7007BECBM ,The raceways of both the inner and outer rings of these non-separable bearings are made with set contact angles. The balls are inserted using counter-bore construction, which allows a larger number of balls to be installed than in deep-groove ball bearings. Single-row angular contact ball bearings can sustain radial, axial and momentary loads. However, any axial load must be applied in one direction. Due to their design, angular contact bearings will experience some amount of axial loading from any radial load that is applied. For this reason, they are often used in pairs.

Specifications:

Angular contact ball bearings 7007-B
contact angle α = 40°
d	35 mm
D	62 mm
B	14 mm
a	27 mm
D₁	53,2 mm
D_{a max}	57,4 mm
D_{b max}	58,8 mm
d₁	46,5 mm
d_{a min}	39,6 mm
r_{1 min}	0,6 mm
r_{a max}	1 mm
r_{a1 max}	0,6 mm
r_min	1 mm
α	40 °	Contact angle
m	0,14 kg	Mass
C_r	24300 N	Basic dynamic load rating, radial
C_0r	17200 N	Basic static load rating, radial
n_G	13400 1/min	Limiting speed
n_B	9500 1/min	Reference speed
C_ur	1160 N	Fatigue limit load, radial

Bearing No.	D(mm)	d(mm)	B(mm)	Weight(kg)
7200 A	30	10	9	0.032
7200 B	30	10	9	0.032
7200 C	30	10	9	0.032
7201 A	32	12	10	0.039
7201 B	32	12	10	0.039
7201 C	32	12	10	0.039
7203 A	40	17	12	0.069
7203 B	40	17	12	0.069
7203 C	40	17	12	0.069
7303 A	47	17	14	0.121
7303 B	47	17	14	0.121
7303 C	47	17	14	0.121
7204 A	47	20	14	0.113
7204 B	47	20	14	0.113
7204 C	47	20	14	0.113
7304 A	52	20	15	0.156
7304 B	52	20	15	0.156
7304 C	52	20	15	0.156
7404 A	72	20	19	0.395
7404 B	72	20	19	0.395
7005 A	47	25	12	0.103
7005 B	47	25	12	0.103
7005 C	47	25	12	0.103
7007A	35	62	14	0.207
7007B	35	62	14	0.207
7007C	35	62	14	0.207
7305 A	62	25	17	0.248
7305 B	62	25	17	0.248
7305 C	62	25	17	0.248
7405 A	80	25	21	0.527
7405 B	80	25	21	0.527
7206 A	62	30	16	0.217
7206 B	62	30	16	0.217
7206 C	62	30	16	0.217
7306 A	72	30	19	0.381
7306 B	72	30	19	0.381
7306 C	72	30	19	0.381
7406 A	90	30	23	0.686
7406 B	90	30	23	0.686

Available Products: Single row7000, 7200, 7300, 7400, 71800, 71900 series, Double rows 3200, 3300, 5200, 5300 series

Applications:

Application Company

Distributors, Retailers, End users

Application Places

Single row angular contact ball bearings: machine tool spindles, high frequency motors, gas turbines, centrifuges, small car front wheel, differential pinion shaft, booster pumps, drilling rigs, food machinery, dividing heads, fill welding, low-noise cooling tower, electrical and mechanical equipment, painting equipment, machine slot board, arc welding machine

Double row angular contact ball bearings: pump, blower, air compressor, various types of transmission, fuel injection pumps, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, welding, soldering iron, square box, gravity gun, wire strippers, axle, test analysis equipment, chemical machinery
