HSS71900- C - T - P4S Spindle Ball Bearing HSS71901- C - T - P4S HSS71902- C - T - P4S HSS 71903

Name: HSS71900 C T P4S Spindle Ball Bearing HSS71901 C T P4S HSS71902 C T P4S HSS 71903
Brand: MONTON
Price: 1 USD

Brand Name : MONTON

Model Number : HSS71900-C-T-P4S

Place of Origin : CHINA

MOQ : 1

Price : USD

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Certification : ISO9001

Payment Terms : T/T

Contact Now

Product Description

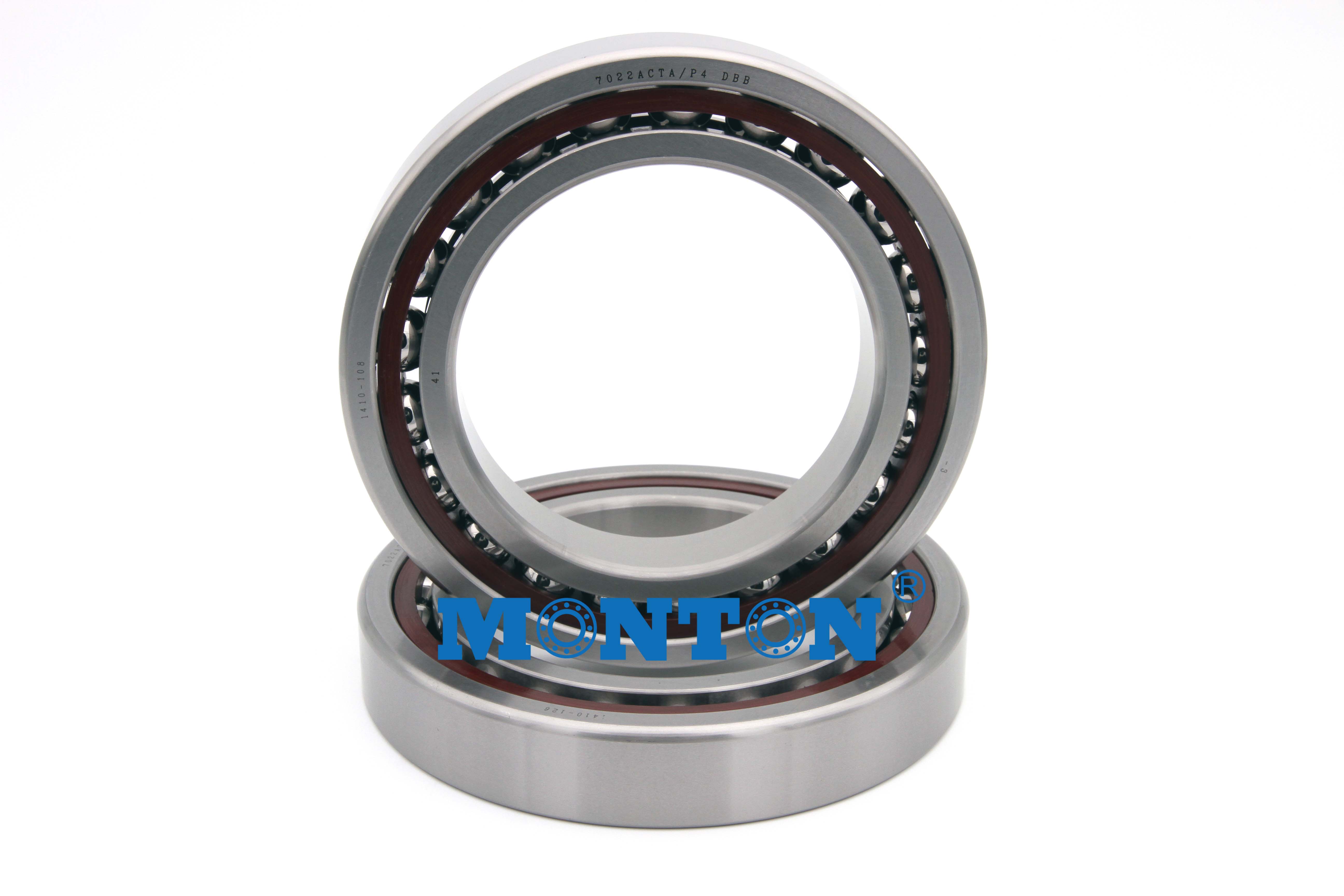

Super precision angular contact ball bearing is also called Spindle bearing. Standard contact angle is 15 (suffix C), 30(suffix A )and 40(suffix B). The bigger contact angle means it has bigger axial load capacity. The smaller contact angle means it is more available for high speed. Angular contact ball bearing is pre- loaded when fixed in the spindle. That is to improve its rigidity and rotate precision. 1.Single row angular contact ball bearing 2.Double row angular contact ball bearing

Product Specification/Models
71xx 72xx .... 79xx 32xx 33xx 52xx 53xx

Sizes			Model
d	D	B	Model
8	22	7	H708C.T.P4A.2RZ	HSS708C.T.P4S
8	22	7	H708AC.T.P4A.2RZ	HSS708E.T.P4S
9	24	7	H709C.T.P4A.2RZ	HSS709C.T.P4S
9	24	7	H709AC.T.P4A.2RZ	HSS709E.T.P4S
10	22	6	H71900C.T.P4A.2RZ	HSS71900C.T.P4S
10	22	6	H71900AC.T.P4A.2RZ	HSS71900E.T.P4S
10	26	8	H7000C.T.P4A.2RZ	HSS7000C.T.P4S
10	26	8	H7000AC.T.P4A.2RZ	HSS7000E.T.P4S
12	24	6	H71901C.T.P4A.2RZ	HSS71901C.T.P4S
12	24	6	H71901AC.T.P4A.2RZ	HSS71901E.T.P4S
12	28	8	H7001C.T.P4A.2RZ	HSS7001C.T.P4S
12	28	8	H7001AC.T.P4A.2RZ	HSS7001E.T.P4S
15	28	7	H71902C.T.P4A.2RZ	HSS71902C.T.P4S
15	28	7	H71902AC.T.P4A.2RZ	HSS71902E.T.P4S
15	32	9	H7002C.T.P4A.2RZ	HSS7002C.T.P4S
15	32	9	H7002AC.T.P4A.2RZ	HSS7002E.T.P4S
17	30	7	H71903C.T.P4A.2RZ	HSS71903C.T.P4S
17	30	7	H71903AC.T.P4A.2RZ	HSS71903E.T.P4S
17	35	10	H7003C.T.P4A.2RZ	HSS7003C.T.P4S
17	35	10	H7003AC.T.P4A.2RZ	HSS7003E.T.P4S
20	37	9	H71904C.T.P4A.2RZ	HSS71904C.T.P4S
20	37	9	H71904AC.T.P4A.2RZ	HSS71904E.T.P4S
20	42	12	H7004C.T.P4A.2RZ	HSS7004C.T.P4S
20	42	12	H7004AC.T.P4A.2RZ	HSS7004E.T.P4S
25	42	9	H71905C.T.P4A.2RZ	HSS71905C.T.P4S
25	42	9	H71905AC.T.P4A.2RZ	HSS71905E.T.P4S
25	47	12	H7005C.T.P4A.2RZ	HSS7005C.T.P4S
25	47	12	H7005AC.T.P4A.2RZ	HSS7005E.T.P4S
30	47	9	H71906C.T.P4A.2RZ	HSS71906C.T.P4S
30	47	9	H71906AC.T.P4A.2RZ	HSS71906E.T.P4S
30	55	13	H7006C.T.P4A.2RZ	HSS7006C.T.P4S
30	55	13	H7006AC.T.P4A.2RZ	HSS7006E.T.P4S
35	55	10	H71907C.T.P4A.2RZ	HSS71907C.T.P4S
35	55	10	H71907AC.T.P4A.2RZ	HSS71907E.T.P4S
35	62	14	H7007C.T.P4A.2RZ	HSS7007C.T.P4S
35	62	14	H7007AC.T.P4A.2RZ	HSS7007E.T.P4S
40	62	12	H71908C.T.P4A.2RZ	HSS71908C.T.P4S
40	62	12	H71908AC.T.P4A.2RZ	HSS71908E.T.P4S
40	68	15	H7008C.T.P4A.2RZ	HSS7008C.T.P4S
40	68	15	H7008AC.T.P4A.2RZ	HSS7008E.T.P4S
45	68	12	H71909C.T.P4A.2RZ	HSS71909C.T.P4S
45	68	12	H71909AC.T.P4A.2RZ	HSS71909E.T.P4S
45	75	16	H7009C.T.P4A.2RZ	HSS7009C.T.P4S
45	75	16	H7009AC.T.P4A.2RZ	HSS7009E.T.P4S
50	72	12	H71910C.T.P4A.2RZ	HSS71910C.T.P4S
50	72	12	H71910AC.T.P4A.2RZ	HSS71910E.T.P4S
50	80	16	H7010C.T.P4A.2RZ	HSS7010C.T.P4S
50	80	16	H7010AC.T.P4A.2RZ	HSS7010E.T.P4S
55	80	13	H71911C.T.P4A.2RZ	HSS71911C.T.P4S
55	80	13	H71911AC.T.P4A.2RZ	HSS71911E.T.P4S
55	90	18	H7011C.T.P4A.2RZ	HSS7011C.T.P4S
55	90	18	H7011AC.T.P4A.2RZ	HSS7011E.T.P4S
60	85	13	H71912C.T.P4A.2RZ	HSS71912C.T.P4S
60	85	13	H71912AC.T.P4A.2RZ	HSS71912E.T.P4S
60	95	18	H7012C.T.P4A.2RZ	HSS7012C.T.P4S
60	95	18	H7012AC.T.P4A.2RZ	HSS7012E.T.P4S
65	90	13	H71913C.T.P4A.2RZ	HSS71913C.T.P4S
65	90	13	H71913AC.T.P4A.2RZ	HSS71913E.T.P4S
65	100	18	H7013C.T.P4A.2RZ	HSS7013C.T.P4S
65	100	18	H7013AC.T.P4A.2RZ	HSS7013E.T.P4S
70	100	16	H71914C.T.P4A.2RZ	HSS71914C.T.P4S
70	100	16	H71914AC.T.P4A.2RZ	HSS71914E.T.P4S
70	110	20	H7014C.T.P4A.2RZ	HSS7014C.T.P4S
70	110	20	H7014AC.T.P4A.2RZ	HSS7014E.T.P4S
75	105	16	H71915C.T.P4A.2RZ	HSS71915C.T.P4S
75	105	16	H71915AC.T.P4A.2RZ	HSS71915E.T.P4S
75	115	20	H7015C.T.P4A.2RZ	HSS7015C.T.P4S
75	115	20	H7015AC.T.P4A.2RZ	HSS7015E.T.P4S
80	110	16	H71916C.T.P4A.2RZ	HSS71916C.T.P4S
80	110	16	H71916AC.T.P4A.2RZ	HSS71916E.T.P4S
80	125	22	H7016C.T.P4A.2RZ	HSS7016C.T.P4S
80	125	22	H7016AC.T.P4A.2RZ	HSS7016E.T.P4S
85	120	18	H71917C.T.P4A.2RZ	HSS71917C.T.P4S
85	120	18	H71917AC.T.P4A.2RZ	HSS71917E.T.P4S
85	130	22	H7017C.T.P4A.2RZ	HSS7017C.T.P4S
85	130	22	H7017AC.T.P4A.2RZ	HSS7017E.T.P4S
90	125	18	H71918C.T.P4A.2RZ	HSS71918C.T.P4S
90	125	18	H71918AC.T.P4A.2RZ	HSS71918E.T.P4S
90	140	24	H7018C.T.P4A.2RZ	HSS7018C.T.P4S
90	140	24	H7018AC.T.P4A.2RZ	HSS7018E.T.P4S
95	130	18	H71919C.T.P4A.2RZ	HSS71919C.T.P4S
95	130	18	H71919AC.T.P4A.2RZ	HSS71919E.T.P4S
95	145	24	H7019C.T.P4A.2RZ	HSS7019C.T.P4S
95	145	24	H7019AC.T.P4A.2RZ	HSS7019E.T.P4S
100	140	20	H71920C.T.P4A.2RZ	HSS71920C.T.P4S
100	140	20	H71920AC.T.P4A.2RZ	HSS71920E.T.P4S
100	150	24	H7020C.T.P4A.2RZ	HSS7020C.T.P4S
100	150	24	H7020AC.T.P4A.2RZ	HSS7020E.T.P4S
105	145	20	H71921C.T.P4A.2RZ	HSS71921C.T.P4S
105	145	20	H71921AC.T.P4A.2RZ	HSS71921E.T.P4S
105	160	26	H7021C.T.P4A.2RZ	HSS7021C.T.P4S
105	160	26	H7021AC.T.P4A.2RZ	HSS7021E.T.P4S
110	150	20	H71922C.T.P4A.2RZ	HSS71922C.T.P4S
110	150	20	H71922AC.T.P4A.2RZ	HSS71922E.T.P4S
110	170	28	H7022C.T.P4A.2RZ	HSS7022C.T.P4S
110	170	28	H7022AC.T.P4A.2RZ	HSS7022E.T.P4S
120	165	22	H71924C.T.P4A.2RZ	HSS71924C.T.P4S
120	165	22	H71924AC.T.P4A.2RZ	HSS71924E.T.P4S
120	180	28	H7024C.T.P4A.2RZ	HSS7024C.T.P4S
120	180	28	H7024AC.T.P4A.2RZ	HSS7024E.T.P4S
130	180	24	H71926C.T.P4A.2RZ	HSS71926C.T.P4S
130	180	24	H71926AC.T.P4A.2RZ	HSS71926E.T.P4S
