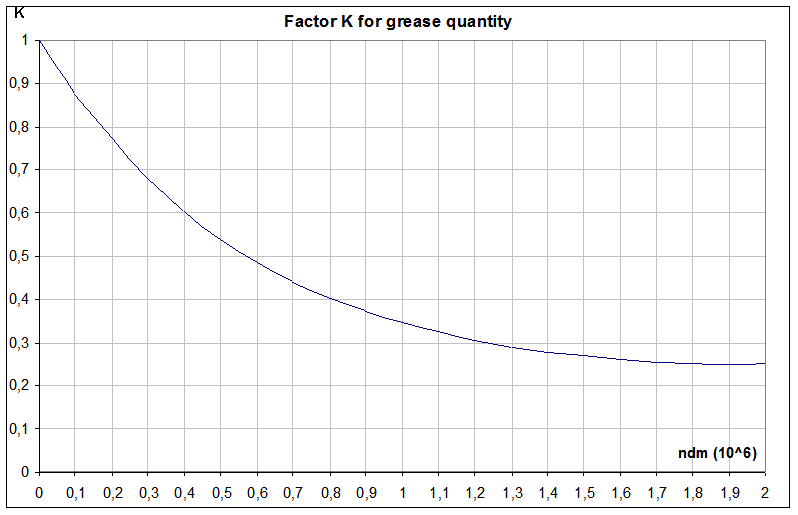

H7006C2RZHQ1P4DBA High Precision Spindle angular contact ball Bearing

DB

The load lines in a pair of bearings by back to back assembly are enlarging from the bearing axis. It can bear axial load in two directions and relative larger moment because of larger angular rigidity.

DF

The load lines in a pair of bearings by face to face assembly are convergence toward the bearing axis. It can bear axial load in two directions and smaller moment because of smaller angular rigidity.

DT

A pair of bearings by series a ssembly only bear axial load in one direction, but it is able to bear larger axial load related to DB and DF.

TBT

The tri-bearing matching TBT or TFT isobtained by increasing the same type of the bearing based on DB or DF There are higher axial and radial rigidity for TBT and TFT, so larger load can be supported.

QBC

The four bearing matching QBC (or QFC) is obtained by matching double set of DB (or DF) bearings. QBT (or QFT) is formed when three bearings are installed in a same direction and another one back (or face) to them.

PBC

Divide the five bearings into two groups of three and two bearings respectively, in which the bearings are all installed in the same direction, PBC is formed when the groups match each other by back to back and PFC by face to face. If four bearings are installed in the same direction and another one back (or face) to them, then PBT (or PFT) is formed.
