Name: 706CHQ1P4GA high preicison high speed angualr contact ball bearing
Brand: MONTON
Price: 1 USD

Brand Name : MONTON

Model Number : 706CHQ1P4GA

Place of Origin : CHINA

MOQ : 1

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Price : USD

Certification : ISO9001

Payment Terms : T/T

Contact Now

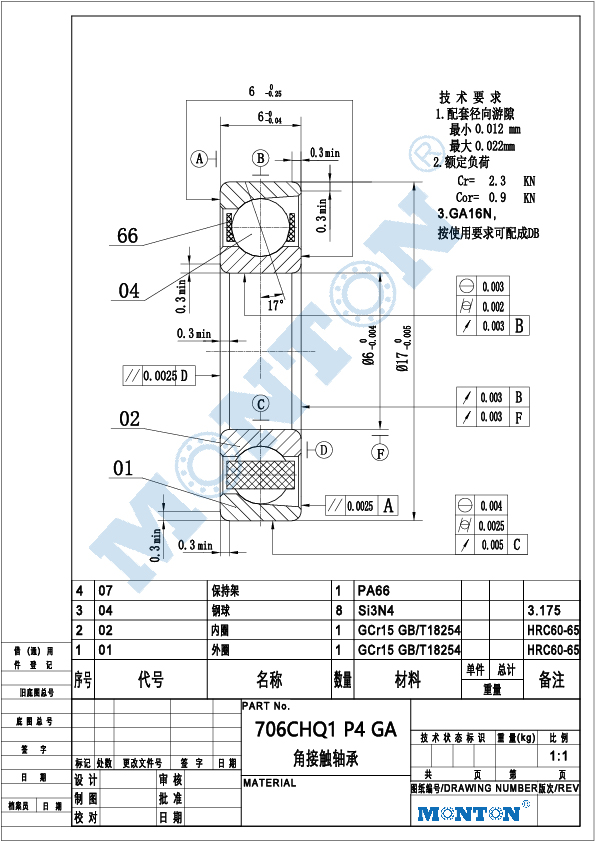

706CHQ1P4GA

706CHQ1P4GA high preicison high speed angualr contact ball bearing

d		6	mm
D		17	mm
B		6	mm
d1		9.5	mm
d2		9.5	mm
D1		13.5	mm
r1,2	min.	0.3	mm
r3,4	min.	0.15	mm
a		4.6	mm


da	min.	8	mm
db	min.	8	mm
Da	max.	15	mm
Db	max.	16.2	mm
ra	max.	0.3	mm
rb	max.	0.15	mm
dn		10.3	mm

Calculation data
Basic dynamic load rating	C		2.03	kN
Basic static load rating	C0		0.765	kN
Fatigue load limit	Pu		0.032	kN
Attainable speed for grease lubrication			120000	r/min
Attainable speed for oil-air lubrication			180000	r/min
Contact angle	α		15	°
Ball diameter	Dw		3.175	mm
Number of balls	z		8
Reference grease quantity	Gref		0.09	cm³
Preload and stiffness (back-to-back, face-to-face)
Preload class A	GA		7	N
Static axial stiffness, preload class A			8	N/µm
Preload class B	GB		13	N
Static axial stiffness, preload class B			11	N/µm
Preload class C	GC		25	N
Static axial stiffness, preload class C			14	N/µm
Preload class D	GD		50	N
Static axial stiffness, preload class D			20	N/µm
Calculation factors
Calculation factor	f		1.01
Calculation factor	f1		1
Calculation factor	f2A		1
Calculation factor	f2B		1.02
Calculation factor	f2C		1.05
Calculation factor	f2D		1.09
Calculation factor	fHC		1
Calculation factor	f0		8.3
Mass
Mass bearing			0.006	kg

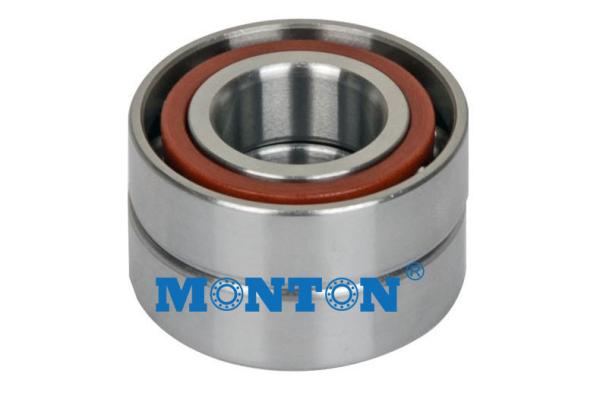

706CHQ1P4GA high preicison high speed angualr contact ball bearing Images
