7206B 30x62x16mm Super Precision 40 Angle Angular Contact Ball Bearing

Item: 7206B Ball Bearings

Type: Single Row Angular Contact Ball Bearings(Spindle Ball Bearings)

Dimensions: 30mm x 62mm x 16mm/Metric

inner diameter: 30 mm

outer diameter: 62 mm

Width: 16mm

Size: 30mm x 62mm x 16mm

Quantity: Two High speed

Dynamic load rating Cr: 21,200N

Static load rating Cor: 13,900N

Limiting Speed:

Grease Lubrication: 8,500RPM

Oil Lubrication: 12,000 RPM

Single Row Angular Contact Ball Bearings are self-retaining units. They have solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is limited.

Features and Benefits

• Lower operating costs • Reduced maintenance due to improved lubrication
• Lower heat generation
• Less noise

Product Application Information

In certain applications, a smaller bearing arrangement can be designed. Single row angular contact ball bearings can support axial forces in one direction and high radial forces. They must be axially adjusted against another bearing fitted in a mirror image arrangement

Suffixes

B - Modified internal construction

TVP - Solid cage made from glass fibre reinforced polyamide

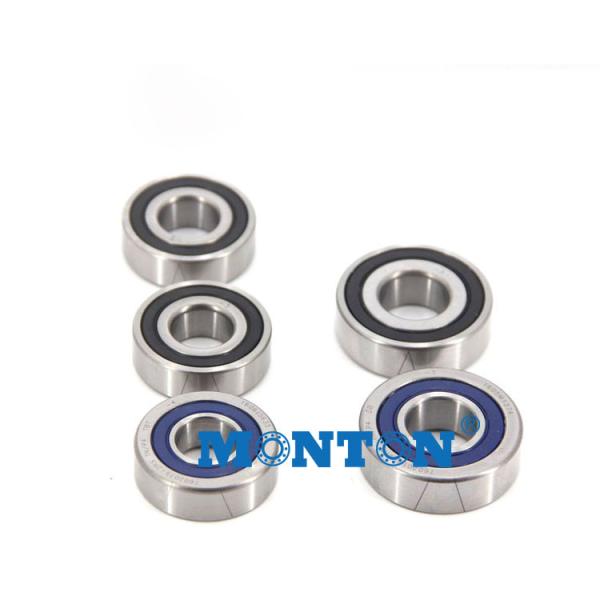

7206B 30x62x16mm Super Precision 40 Angle Angular Contact Ball Bearing Images
