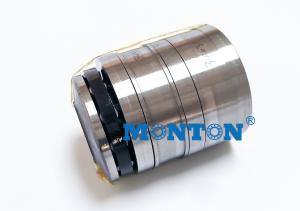

M2CT89190 88.9190.5107.95mm Tandem thrust bearing for twin screw extruder

Name: M2CT89190 889190510795mm Tandem thrust bearing for twin screw extruder
Brand: MONTON
Price: 1 USD

China M2CT89190 88.9*190.5*107.95mm Tandem thrust bearing for twin screw extruder wholesale

Brand Name : MONTON

Model Number : M2CT89190

Place of Origin : Luoyang

MOQ : 1 PCS

Price : Ask

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PCS/WEEK

Delivery Time : 5-35 days

Packaging Details : Single box

Certification : ISO9001

Contact Now

M2CT89190 88.9*190.5*107.95mm

Tandem thrust bearing for twin screw extruder

M2CT89190 88.9*190.5*107.95mm Tandem thrust bearing for twin screw extruder

New_spec	Designations	Bearings Dimension			Basic load ratings		Weight

		d	D	H	dyc_Cr	stc_Cor

		mm			KN		kg
M2CT88190Y		88.9	190.5	107.95	1359	5534	14.4
M2CT89190		88.9	190.5	107.95	1359	5534	14.4

Tandem Thrust bearings are also known as “Multi-Stage cylindrical roller thrust bearings” .

Tandem Thrust bearings are comprised of "stages" which include precision ground and matched thrust plates. These bearings also include compression sleeves separated by cylindrical roller assemblies. This design enables the Tandem Thrust bearings to provide a solution in a radial restricted envelope. The bearings are available in multiple stages, 2-8 to accommodate your design requirements. Depending on your preference, these bearings are available in a wide variety of sizes and options.

TandemThrust Bearings can receive heavy load in a limited space and support firmly in the direction of axis and last long with low frictional power. In addition, these bearings are moved by oil lubrication. Also thesetandem thrust bearings are used principally in gear boxes for single & twin screw extruders in the rubber and plastic industries.
