719/8 CE/HCP4A VEB8/NS7CE1 Angular Contact Ball Bearing

Name: 7198 CEHCP4A VEB8NS7CE1 Angular Contact Ball Bearing
Brand: MONTON
Price: 1 USD

Brand Name : MONTON

Model Number : 719/8 CE/HCP4A VEB8/NS7CE1

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Ask

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Contact Now

Part Number :719/8 CE/HCP4A

NSK Code :798CSN24TRP4

719/8 CE/HCP4A VEB8/NS7CE1 Angular Contact Ball Bearing

Arrangement DB Set of two bearings arranged back-to-back <>

DF Set of two bearings arranged face-to-face ><

DT Set of two bearings arranged in tandem <<

DG Set of two bearings for universal matching

Bore Dia (d) 8 mm

Bore Dia Tolerance -0.004mm to 0

Outer Dia (D) 19 mm

Outer Dia Tolerance -0.005mm to 0

Width (B) 6 mm

Width Tolerance -0.04mm to 0

Ring Material 52100 Chrome steel

Ball Material Ceramic Ball Si3N4

Cage Material Polyamide

Dynamic Load Rating (Cr) (KN) 1.74

Static Load Rating (Cor) (KN) 0.63

Max Speed (Grease) (RPM) 145000

Max Speed (Oil) (RPM) 220000

Preload Extra Light Preload

Light Preload

Medium Preload

Heavy Preload

Special Preload

Special Axial Clearance

Lubrication Required

Shaft Mount Type Press Fit

Temperature Range -40 to 120 ºC

Weight (grams) 6

China 719/8 CE/HCP4A VEB8/NS7CE1 Angular Contact Ball Bearing wholesale

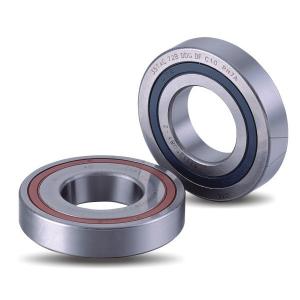

719/8 CE/HCP4A VEB8/NS7CE1 Angular Contact Ball Bearing Images
