7305BTVP/P5 Angular Contact Ball Bearings Used For Air compressor or Elevator

Name: 7305BTVPP5 Angular Contact Ball Bearings Used For Air compressor or Elevator
Brand: MONTON
Price: 3.00 USD

China 7305BTVP/P5 Angular Contact Ball Bearings Used For Air compressor or Elevator wholesale

Brand Name : MONTON

Model Number : 7305B TVP/P5

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : 3.00USD/pc

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Material : GCr15

Accuracy : P5

Vibration : Z2V2

Contact angle : 40

Application : Air Compressor or elevator or CNC

Contact Now

7305BTVP/P5 Angular Contact Ball Bearings Used For Air compressor or Elevator

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Main advantage:

1)We supply the full dimension range 73 series bearings.We can supply from the 12mm to 170mm.

2)Our bearings quality can reach P5 or P4 accuracy according to the customer demands

3)Quality,the bearings are produced exact according to the ISO standard.

Main application:Air Compressor or crane or Elevator or other application

Material:High quality XingCheng material

Heat treatment:Aichelin heat treatment

Here below is the catalogue:

Bearing Model		d (mm)	D (mm)	B (mm)
7301-B-XL-JP	7301B-JP	12	37	12
7301-B-XL-TVP	7301B-TVP	12	37	12
7302-B-XL-JP	7302B-JP	15	42	13
7302-B-XL-MP	7302B-MP	15	42	13
7302-B-XL-TVP	7302B-TVP	15	42	13
7303-B-XL-JP	7303B-JP	17	47	14
7303-B-XL-TVP	7303B-TVP	17	47	14
7304-B-XL-JP	7304B-JP	20	52	15
7304-B-XL-MP	7304B-MP	20	52	15
7304-B-XL-TVP	7304B-TVP	20	52	15
7305-B-XL-JP	7305B-JP	25	62	17
7305-B-XL-MP	7305B-MP	25	62	17
7305-B-XL-TVP	7305B-TVP	25	62	17
7306-B-XL-JP	7306B-JP	30	72	19
7306-B-XL-MP	7306B-MP	30	72	19
7306-B-XL-TVP	7306B-TVP	30	72	19
7307-B-XL-JP	7307B-JP	35	80	21
7307-B-XL-MP	7307B-MP	35	80	21
7307-B-XL-TVP	7307B-TVP	35	80	21
7308-B-XL-JP	7308B-JP	40	90	23
7308-B-XL-MP	7308B-MP	40	90	23
7308-B-XL-TVP	7308B-TVP	40	90	23
7309-B-XL-JP	7309B-JP	45	100	25
7309-B-XL-MP	7309B-MP	45	100	25
7309-B-XL-TVP	7309B-TVP	45	100	25
7310-B-XL-JP	7310B-JP	50	110	27
7310-B-XL-MP	7310B-MP	50	110	27
7310-B-XL-TVP	7310B-TVP	50	110	27
7311-B-XL-JP	7311B-JP	55	120	29
7311-B-XL-MP	7311B-MP	55	120	29
7311-B-XL-TVP	7311B-TVP	55	120	29
7312-B-XL-JP	7312B-JP	60	130	31
7312-B-XL-MP	7312B-MP	60	130	31
7312-B-XL-TVP	7312B-TVP	60	130	31
7313-B-XL-JP	7313B-JP	65	140	33
7313-B-XL-MP	7313B-MP	65	140	33
7313-B-XL-TVP	7313B-TVP	65	140	33
7314-B-XL-JP	7314B-JP	70	150	35
7314-B-XL-MP	7314B-MP	70	150	35
7314-B-XL-TVP	7314B-TVP	70	150	35
7315-B-XL-JP	7315B-JP	75	160	37
7315-B-XL-MP	7315B-MP	75	160	37
7315-B-XL-TVP	7315B-TVP	75	160	37
7316-B-XL-JP	7316B-JP	80	170	39
7316-B-XL-MP	7316B-MP	80	170	39
7316-B-XL-TVP	7316B-TVP	80	170	39
7317-B-XL-JP	7317B-JP	85	180	41
7317-B-XL-MP	7317B-MP	85	180	41
7317-B-XL-TVP	7317B-TVP	85	180	41
7318-B-XL-JP	7318B-JP	90	190	43
7318-B-XL-MP	7318B-MP	90	190	43
7318-B-XL-TVP	7318B-TVP	90	190	43
7319-B-XL-JP	7319B-JP	95	200	45
7319-B-XL-MP	7319B-MP	95	200	45
7319-B-XL-TVP	7319B-TVP	95	200	45
7320-B-XL-JP	7320B-JP	100	215	47
7320-B-XL-MP	7320B-MP	100	215	47
7320-B-XL-TVP	7320B-TVP	100	215	47
7321-B-XL-MP	7321B-MP	105	225	49
7322-B-XL-JP	7322B-JP	110	240	50
7322-B-XL-MP	7322B-MP	110	240	50
7322-B-XL-TVP	7322B-TVP	110	240	50
7324-B-XL-MP	7324B-MP	120	260	55
7324-B-XL-TVP	7324B-TVP	120	260	55
7326-B-XL-MP	7326B-MP	130	280	58
7326-B-XL-TVP	7326B-TVP	130	280	58
7328-B-MP	7328B-MP	140	300	62
7330-B-MP	7330B-MP	150	320	65
7332-B-MP	7332B-MP	160	340	68
7334-B-MP	7334B-MP	170	360	72

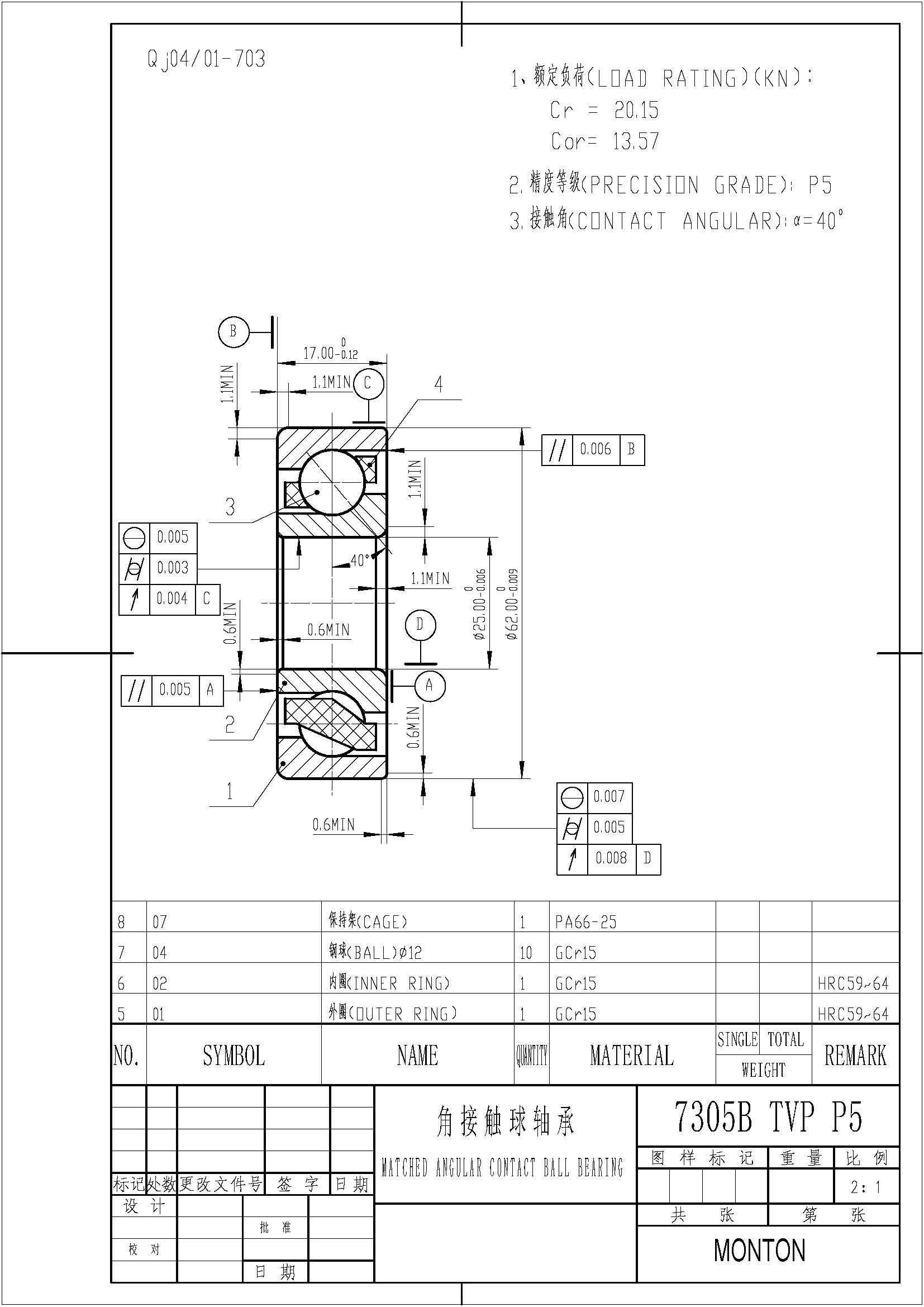

7305BTVP/P5 Angular Contact Ball Bearings Used For Air compressor or Elevator Images
