ZKLN2052-2RS/P4 thrust angular contact ball bearings for the spindles

Name: ZKLN20522RSP4 thrust angular contact ball bearings for the spindles
Brand: MONTON
Price: 60 USD

China ZKLN2052-2RS/P4 thrust angular contact ball bearings for the spindles wholesale

Brand Name : MONTON

Model Number : ZKLN2052-2RS/P4

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : 60USD

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Material : GCr15

Accuracy : P4 or P2

Structure : Axial Angular contact ball bearings

Type : Ball screw double row

Customers : DMG,FFG,etc

Market : Germany,Japan,Italy,USA,etc

Matched ways : Universal or pairs

Contact Now

ZKLN2052-2RS/P4 thrust angular contact ball bearings for the spindles

d	20 mm	Tolerance: 0/-0,005
D	52 mm	Tolerance: 0/-0,010
B	28 mm	Tolerance: 0/-0,25

	60 °	Contact angle
Da max	43 mm
d1	34,5 mm
da min	25 mm
r1 min	0,6 mm
rmin	0,3 mm

m	0,31 kg	≈ Mass
Ca	28500 N	Basic dynamic load rating, axial
C0a	47000 N	Basic static load rating, axial
Cua	2850 N	Fatigue limit load, axial
nG Fett	6600 1/min	Limiting speed for grease lubrication
nϑ	3000 1/min	Thermally safe operating speed
MRL	0,3 Nm	Bearing frictional torque
caL	650 N/µm	Axial rigidity
ckL	140 Nm/mrad	Tilting rigidity
Mm	0,273 kg * cm^2	Mass moment of inertia for rotating inner ring
	2 µm	Axial runout The axial runout data for screw drive bearing arrangements are based on the rotating inner ring.
	ZM20	Recommended precision locknuts with radial clamping The recommended precision locknuts are not included in the scope of delivery and must be ordered separately.
	AM20	Recommended precision locknuts with axial clamping The recommended precision locknuts are not included in the scope of delivery and must be ordered separately.
MA	18 Nm	Tightening torque Only valid in conjunction with precision locknuts. Observe the guidelines on locating/locating bearing arrangements.
	8258 N	Requisite locknut force, axial The requisite axial locknut force must be observed when using other locknuts.

ZKLN2052-2RS/P4 thrust angular contact ball bearings for the spindles

Here below is the exact bearing codes information:

ZKLN 1242.2Z	ZKLF 2575.2RS	ZKLN 1242.2RS PE	ZKLF 1762.2RS 2AP
ZKLN 1545.2RS	ZKLF 2575.2Z	ZKLN 1545.2RS PE	ZKLF 2068.2RS 2AP
ZKLN 1545.2Z	ZKLF 3080.2RS	ZKLN 1747.2RS PE	ZKLF 2575.2RS 2AP
ZKLN 1747.2RS	ZKLF 3080.2Z	ZKLN 2052.2RS PE	ZKLF 3080.2RS 2AP
ZKLN 1747.2Z	ZKLF 3590.2RS	ZKLN 2557.2RS PE	ZKLF 3590.2RS 2AP
ZKLN 2052.2RS	ZKLF 3590.2Z	ZKLN 3062.2RS PE	ZKLF 40100.2RS 2AP
ZKLN 2052.2Z	ZKLF 40100.2RS	ZKLN 5090.2RS PE	ZKLF 50115.2RS 2AP
ZKLN 2557.2RS	ZKLF 40100.2Z	ZKLN 1747.2RS 2AP	ZKLDF 100
ZKLN 2557.2Z	ZKLF 50115.2RS	ZKLN 2052.2RS 2AP	ZKLDF 120
ZKLN 3062.2RS	ZKLF 50115.2Z	ZKLN 2557.2RS 2AP	ZKLDF 150
ZKLN 3062.2Z	ZKLF 60145.2Z	ZKLN 3062.2RS 2AP	ZKLDF 200
ZKLN 3572.2RS	ZKLF 70155.2Z	ZKLN 3572.2RS 2AP	ZKLDF 260
ZKLN 3572.2Z	ZKLF 80165.2Z	ZKLN 4075.2RS 2AP	ZKLDF 325
ZKLN 4075.2RS	ZKLF 901910.2Z	ZKLN 5090.2RS 2AP	ZKLDF 395
ZKLN 4075.2Z	ZKLF 100200.2Z		ZKLDF 460

Axial angular contact ball bearings ZKLN..-2RS and ZKLN..-2Z are also available in a heavy series. For the same shaft diameter, they have a larger cross-section and thus higher basic load ratings.

We also have batch production for the ZKLF series thrust angular contact ball bearings and our bearings got very good reputation from our customers and can fullly replace the INA bearings.

We welcome customers from all over the world to send inquires to us.

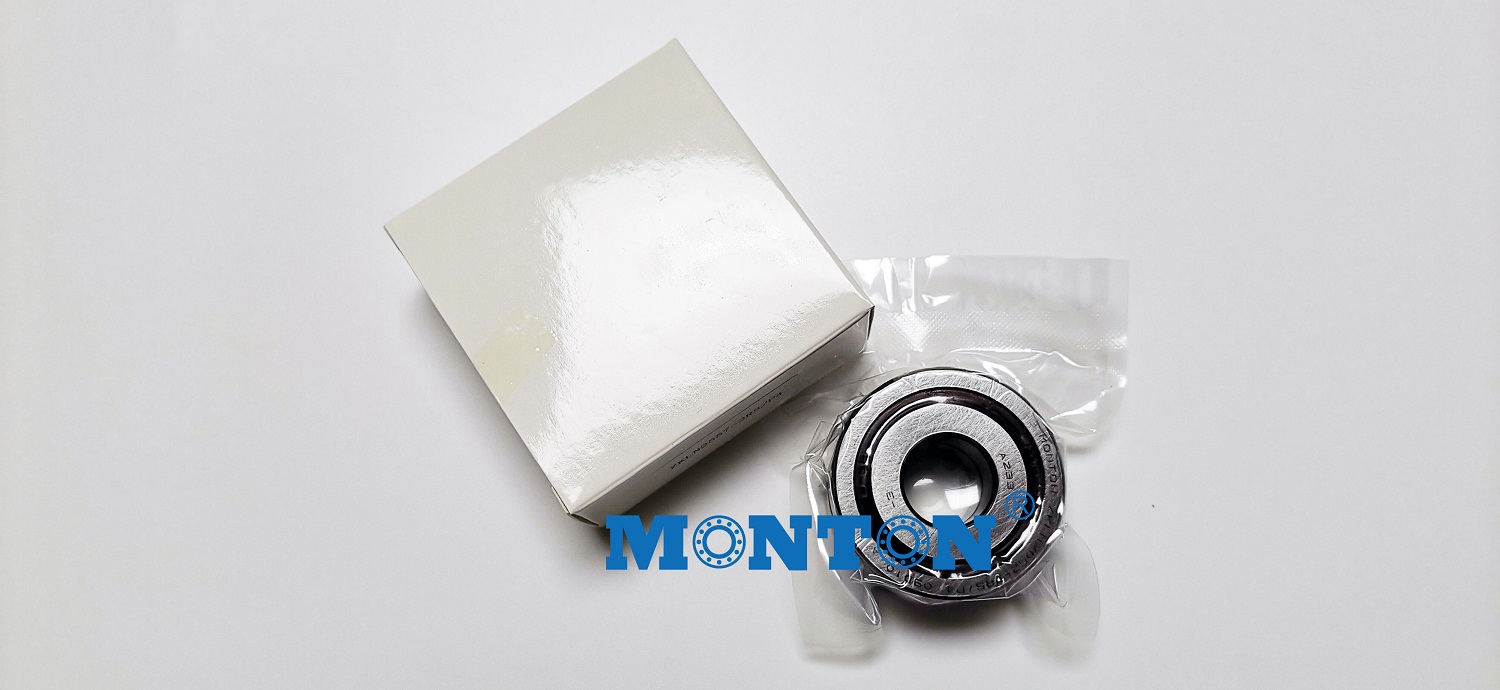

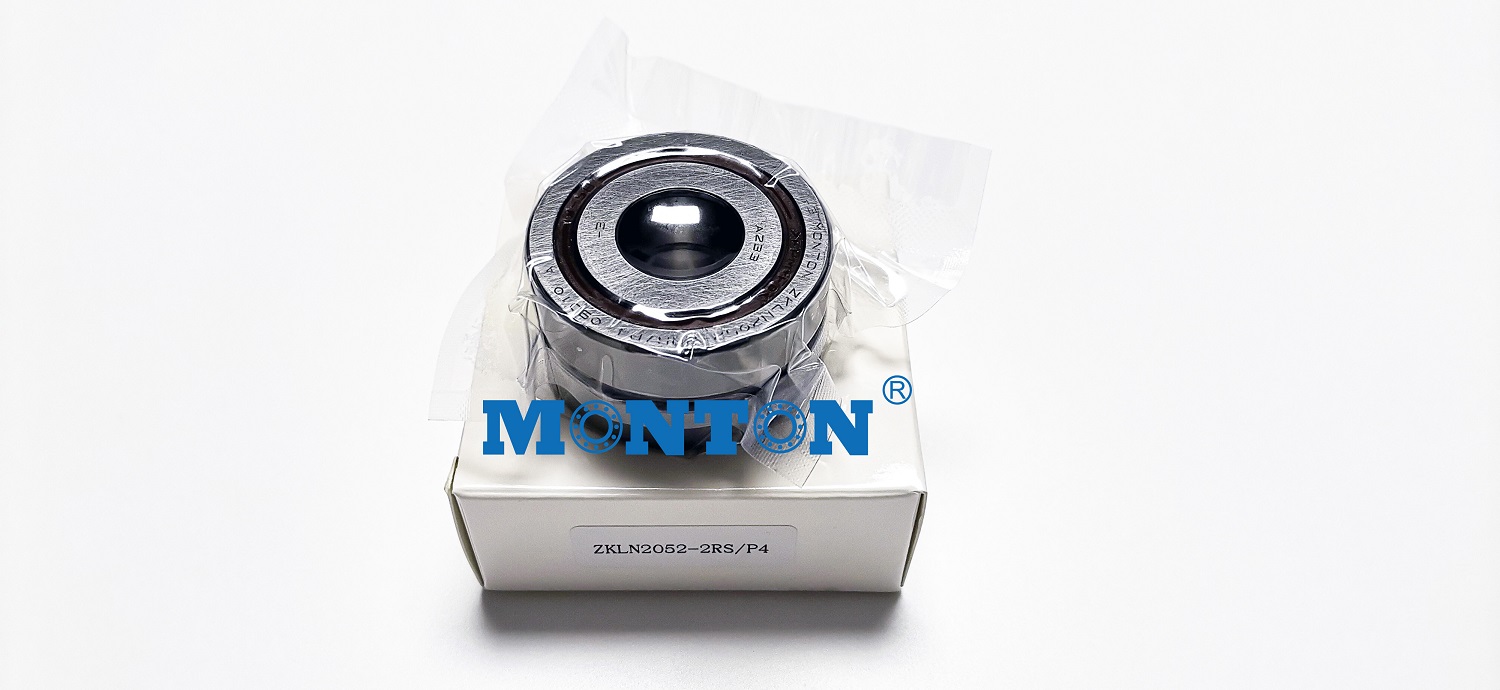

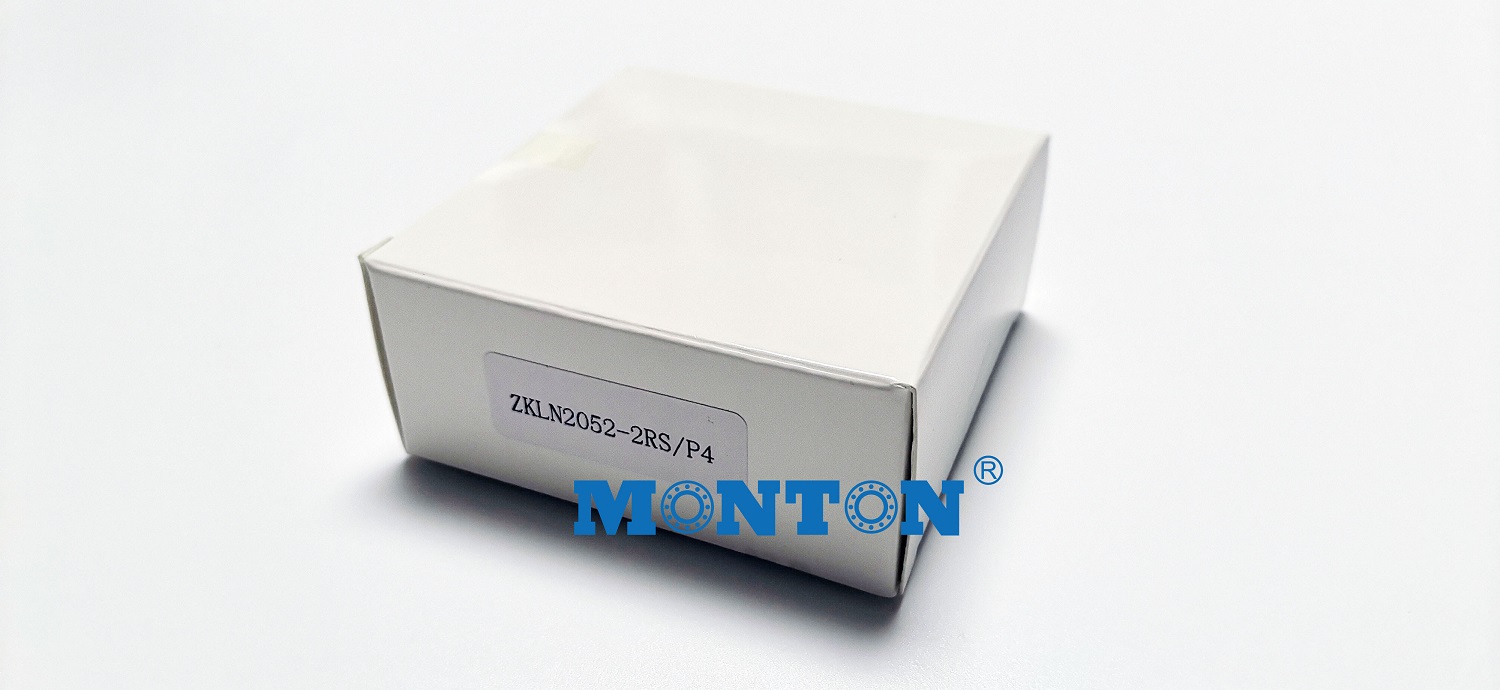

ZKLN2052-2RS/P4 thrust angular contact ball bearings for the spindles Images
