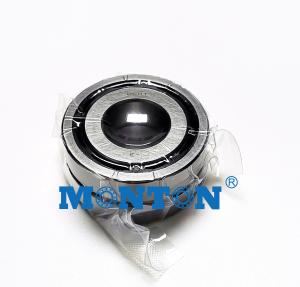

ZKLN90150-2Z 9015055mm Axial angular contact ball bearings

Product Categories

Angular Contact Ball Bearing [710]
Mud Motor Bearings [132]
LNG Pump Bearing [59]
Cross Roller Bearing [406]
Rotary Table Bearing [85]
Thin Section Bearings [29]
Flxible Bearing [70]
Spherical Roller Bearing [81]
Taper Roller Bearing [111]
Deep Groove Ball Bearing [42]
Thrust Roller Bearing [20]
Slewing Drive [39]
Cylindrical Roller Bearing [135]
Multi-Stage Cylindrical Roller Thrust Bearings [231]
Insulated Bearings [78]
AC Servo Actuator [9]
Non Standard Bearings [41]
Fluid dynamic bearings [6]
High Speed Wire Rod Rolling Mill Bearing [87]
GAMET Super Precision Tapered Roller Bearings [36]
Turbojet Bearing [7]

LUOYANG MONTON BEARING SCIENCE & TECHNOLOGY CO.,LTD.

Contact Now

ZKLN90150-2Z 9015055mm Axial angular contact ball bearings

Name: ZKLN901502Z 9015055mm Axial angular contact ball bearings
Brand: MONTON
Price: 1 USD

China ZKLN90150-2Z 90*150*55mm Axial angular contact ball bearings wholesale

Brand Name : MONTON

Model Number : ZKLN90150-2Z

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Ask

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Bearing : ZKLN90150-2Z

d : 90mm

D : 150mm

B : 55mm

Weight : 2.4KG

Contact Now

ZKLN90150-2Z 90*150*55mm Axial angular contact ball bearings

Designation

Dimensions

Mounting dimensions

Basic load ratings
axial

Recommended precision locknut

Required locknut force³⁾
axial
N

Mass
m
= kg

D
–0,010

B
–0,25

d₁

r
min.

r₁
min.

D_a
max.

d_a
min.

dyn. C_a
N

stat.
^C0a N

For radial locking

For axial locking

Tightening torque⁴⁾
M_A
Nm

ZKLN90150-2Z

150

120

0.6

138

116

1E+05

395000

ZMA90/130

AM90

200

22731

4.5

ZKLN90150-2Z 90*150*55mm Axial angular contact ball bearings

Axial angular contact ball bearings are precision bearings for supporting screw drives. Depending on the series, they can support high radial forces as well as axial forces from one or both sides.
The inner ring is matched to the ball and cage assemblies and the outer ring. As a result, the bearings can be set to a defined axial preload. Contact seals protect the rolling element system against
contamination and moisture. For higher speeds, gap seals can be used.
The bearings are available with and without fixing holes in the outer ring. Bearings with holes are screw mounted directly on the adjacent construction. This solution is particularly economical since there is no need for the locating bore otherwise required or for the bearing cover with the associated matching work.
For applications in the handling sector, for woodworking machinery and transport type screw drives, a bearing arrangement with a lower level of precision is often sufficient. For this purpose, there are versions with less stringent tolerances.
