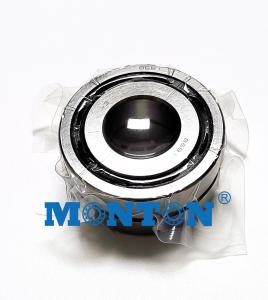

ZKLN4090-2RS 409046mm Axial angular contact ball bearings

Name: ZKLN40902RS 409046mm Axial angular contact ball bearings
Brand: MONTON
Price: 1 USD

China ZKLN4090-2RS 40*90*46mm Axial angular contact ball bearings wholesale

Brand Name : MONTON

Model Number : ZKLN4090-2RS

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Ask

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Bearing : ZKLN4090-2RS

d : 40mm

D : 90mm

B : 46mm

Weight : 1.0KG

Contact Now

ZKLN4090-2RS 40*90*46mm Axial angular contact ball bearings

Designation	Dimensions						Mounting dimensions		Basic load ratings axial		Recommended precision locknut			Required locknut force³⁾ axial N	Mass m = kg
Designation	d	D –0,010	B –0,25	d₁	r min.	r₁ min.	D_a max.	d_a min.	dyn. C_a N	stat. ^C0a N	For radial locking	For axial locking	Tightening torque⁴⁾ M_A Nm	Required locknut force³⁾ axial N	Mass m = kg
ZKLN4090-2RS	40	90	46	65	1	0.6	80	56	79000	149000	ZMA40/62	AM40	110	25185	1
ZKLN4090-2Z	40	90	46	65	1	0.6	80	56	79000	149000	ZMA40/62	AM40	110	25185	1

ZKLN4090-2RS 40*90*46mm Axial angular contact ball bearings

Axial angular contact ball bearings are precision bearings for supporting screw drives. Depending on the series, they can support high radial forces as well as axial forces from one or both sides.
The inner ring is matched to the ball and cage assemblies and the outer ring. As a result, the bearings can be set to a defined axial preload. Contact seals protect the rolling element system against
contamination and moisture. For higher speeds, gap seals can be used.
The bearings are available with and without fixing holes in the outer ring. Bearings with holes are screw mounted directly on the adjacent construction. This solution is particularly economical since there is no need for the locating bore otherwise required or for the bearing cover with the associated matching work.
For applications in the handling sector, for woodworking machinery and transport type screw drives, a bearing arrangement with a lower level of precision is often sufficient. For this purpose, there are versions with less stringent tolerances.

Radial and axial load carrying capacity

Due to the 60° contact angle, the bearings can support high axial forces.

Double row axial angular contact ball bearings,for screw mounting
Axial angular contact ball bearings ZKLF are screw mounted directly on the adjacent construction or in a radial locating bore, Figure 1
and Figure 2. The cover that would otherwise be required and the associated matching work can therefore be dispensed with.
In order to aid removal of the bearings from a locating bore, the outer ring has a circumferential extraction slot.
Relubrication is facilitated by radial and axial threaded connectors with set screws.
