HP60G01 53.73228mm Turbocharger Bearings

Name: HP60G01 5373228mm Turbocharger Bearings
Brand: MONTON
Price: 1 USD

China HP60G01 53.73*22*8mm Turbocharger Bearings wholesale

Brand Name : MONTON

Model Number : HP60G01

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Ask

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Number of row : Single Row

Precision rating : P0 P6 P5 P4 P2

Seals type : Open

Structure : Ball beairng

Type : Ball

Application : Machine Parts,Air compressor,Reducer,Pump

Sample : Avaliable

Package : Standard package

Vibration : V1 V2 V3 V4

Clearance : C4

Contact Now

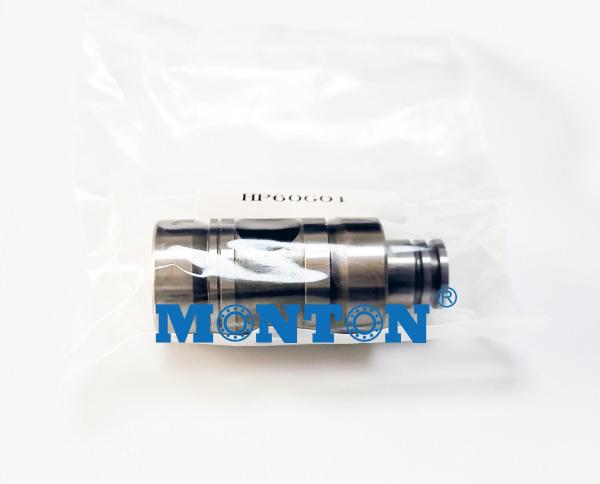

HP60G01 53.73*22*8mm Turbocharger Bearings

HP60G01 53.73*22*8mm Turbocharger Bearings

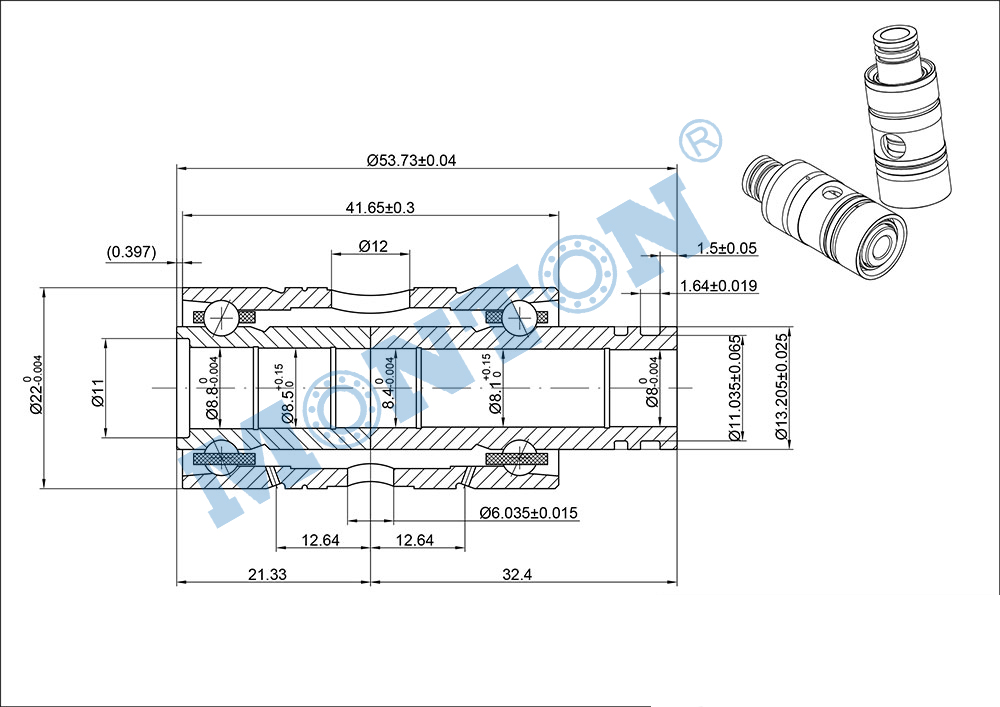

MFG Code : HP60G01

Bearing Type : Ball

For Load Direction: Combined Radial and Thrust

Construction :Single Row

System of Measurement Metric

Seal Type Open

For Shaft Diameter 8mm

Bore Dia : 8mm

Bore Dia Tolerance : 0 to -0.004mm

For Housing ID :22mm

Outer Dia :22mm

Outer Dia Tolerance: 0 to -0.004mm

Width :53.73mm

Width Tolerance: -0.04mm to +0.04mm

Ring Material :M50 Steel

Ball Material SAINT-GOBAIN Ceramic Balls

Cage Material VICTREX PEEK Polymers

ABEC Rating ABEC9 (P2)

Max Speed (RPM) 150000

Lubrication Required

Lubricant Grease

Shaft Mount Type Press Fit

Temperature Range : -60 to 300 ℃

RoHS Compliant

Application GT25R.28R.30R.35R,GT28,GT30,GT35
